If you want to use the RasPiGNSS expansion boards for PPP or RTK applications, you need to make absolutely sure to get the most from satellite signals available, thus using a quality antenna capable of receiving GPS, GLONASS, GALILEO, and SBAS signals is strongly encouraged.
In our tests with the RasPiGNSS modules we tested both no-brand stock GPS antennas as well as high-gain quality active GPS/GLONASS/GALILEO/BEIDOU antennas from Tallysman™. Our tests indicate that quality antennas like the Tallysman™ TW-4421/TW-4721 or TW-2410/TW-2710 outperform standard GPS antennas by far, regarding both signal strength and fix quality.
Since all of those antennas are so-called active antennas, they use a built-in LNA (Low-Noise Amplifier) for signal filtering and amplification. In contrast to passive antennas which need no power supply, this built-in LNA needs electrical power with specific voltage and electrical current delivery capabilities (See the FAQ for more details on antenna compatbility). All of the active Tallysman™ GNSS antennas offered here feature a built-in LNA which fits nicely with the power delivery capabilities of the GNSS chips on the RasPiGNSS modules in terms of output voltage and electrical current delivery.
Note: Please be absolutely sure in what frequency bands you expect the receiver to cover and make sure the GNSS antenna precisely supports those frequency bands!
The RasPiGNSS “Aldebaran” uses the upper-L-band (L1) NV08C-CSM GNSS receiver chip, therefore selecting a suitable GNSS antenna covering the L1 GPS satellite band at a minimum is important. To utilize the GLONASS satellite system as well, make sure the antenna is capable of receiving the G1 band as well, as the RasPiGNSS “Aldebaran” does. Additionally, for GALILEO satellite system reception, the E1 band has to be supported as well. The RasPiGNSS “Aldebaran” will support all those bands (L1, G1, and E1) with the newest firmware, the RasPiGNSS “Copernicus” will support them out-of-the-box.
The RasPiGNSS “Betelgeuse” will support the GPS/QZSS L1 and L2 bands (including SBAS signals), the GLONASS G1, G2, and G3 bands, the GALILEO E1 and E5b bands, as well as the BeiDou B1 and B2 bands.
For details about GNSS satellite bands and their frequency allocation scheme, see Navipedia.
We are now able to provide a curated selection of recommended Tallysman antennas in our webshop for your convenience. Use the links provided here to jump directly to antennas best suited for a specific RasPiGNSS model:
- Antennas for the RasPiGNSS “Betelgeuse”
- Antennas for the RasPiGNSS “Copernicus”
- Antennas for the RasPiGNSS “Aldebaran”
Dual-frequency GPS/GLONASS/GALILEO/BEIDOU Antennas
These antennas are capable of receiving the GPS/QZSS L1+L2, GLONASS G1+G2+G3, GALILEO E1+E5b, BeiDou B1+B2, as well as SBAS (WAAS, QZSS, EGNOS & MSAS) GNSS satellite frequency bands. They are ideally suited for the RasPiGNSS “Betelgeuse” receiver which is capable of receiving those satellite frequencies.
Tallysman™ TW-3887
Ideal for precision positioning and RTK surveying systems, the TW3887 provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection.
The TW3887 features a precision tuned, circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier (LNA), then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
The TW3887 also includes an LNA pre-filter, providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.
The TW3887 performs with excellent axial ratios and a tightly grouped phase center variation.
Delivered with 5m RG-58 cable and a male SMA connector, the TW-3887 offers excellent performance with the RasPiGNSS “Betelgeuse”, since it is uniquely capable of handling the GALILEO E5b frequency band as well. Due to its open-frame design without housing it is perfectly suited for custom-built GNSS solutions like base stations or high-precision rovers.
Please see the Tallysman TW-3887 product page for details, or download the data sheet directly.
Tallysman™ TW-8889
Ideal for dual frequency positioning where minimizing weight is important, the 52-gram TW8889 provides excellent axial ratio and tight Phase Centre Variation (PCV).
The TW8889 features a precision tuned, circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
The TW8889 also includes an LNA pre-filter that provides enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.
The TW8889 is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet or adhesive material.
Delivered with 5m RG-58 cable and a male SMA connector, the TW-8889 offers excellent performance with the RasPiGNSS “Betelgeuse”, since it is uniquely capable of handling the GALILEO E5b frequency band as well. Due to its compact and robust design it is perfectly suited for GNSS solutions like compact RTK surveying systems or high-precision rovers.
Please see the Tallysman TW-8889 product page for details, or download the data sheet directly.
Tallysman™ TW-7882
This dual-frequency antenna features a large patch and dome housing. It is the ideal companion for the TW-8889 for building a corresponding base station with the RasPiGNSS “Betelgeuse”.
The TW7882 features a precision tuned, circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier (LNA), then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
The TW7882 also includes an LNA pre-filter, providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.
The TW7882 is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet, screws or adhesive material.
Please see the Tallysman TW-7882 product page or the datasheet for the full technical specifications of this antenna.
Tallysman™ TW-3882
Being a modified variant of the TW-7882, this dual-frequency antenna exhibits the same large patch area, but offers a center screw mounting and a center connection, thus being able to be mounted on a circular base plate with center mounting an through-hole central cable lead. Thus, this antenna is the professional top-of-the-line base station equipment to use when excellent performance under all environmental conditions is expected.
The TW3882 features a precision tuned, circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier (LNA), then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
The TW3882 also includes an LNA pre-filter, providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.
The TW3882 performs with excellent axial ratios and a tightly grouped phase center variation.
The TW3882 is housed in a permanent mount industrial grade weather-proof enclosure, equipped with a flat grey radome. A 100mm ground plane is recommended for non-roof-top installations.
Please see the Tallysman TW-3882 product page or the datasheet for the full technical specifications of this antenna.
Single-frequency GPS/GLONASS/GALILEO/BEIDOU Antennas
These antennas are capable of receiving the GPS/QZSS L1, GLONASS G1, Galileo E1, BeiDou B1, as well as SBAS (WAAS, QZSS, EGNOS & MSAS) GNSS satellite frequency bands. They are ideally suited for the RasPiGNSS “Copernicus” receiver which is capable of receiving those satellite frequencies.
Tallysman™ TW-2710
Ideal for precision industrial, agricultural and all challenging applications the TW2710 provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection.
The TW2710 features a customizable high performance, dual-feed, wide band patch element. Its Low Noise Amplifier (LNA) configuration provides a LNA for each feed, a mid-section Surface Acoustic Wave (SAW) filter for the combined signal, followed by a final stage of LNA. This configuration provides excellent axial ratio that is constant across the full frequency band.
The TW2710 is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet, screws or adhesive material, and is delivered with 5m cable and SMA male connector suitable for connecting to the RasPiGNSS module.
Please see the Tallysman TW-2710 product page for detailed specifications or download the data sheet directly.
Tallysman™ TW-4721
Ideal for high accuracy applications while providing high out of band signal rejection, the TW4721 is the smallest dual feed, high performance antenna available, providing truly circular response over its entire bandwidth thereby producing superior multi-path signal rejection.
The TW4721 features a novel 25mm dual-feed wide-band patch element that provides a more linear carrier phase response by virtue of the axial ratio that is greatly improved across the full frequency bandwidth. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
The TW4721 is housed in a compact IP67 compliant enclosure that can be surface mounted via magnet, screws or adhesive material and is delivered with a 3m cable and SMA male connector suitable for connecting to the RasPiGNSS “Aldebaran” module.
Please see the Tallysman TW-4721 product page for detailed specifications or download the data sheet directly.
Tallysman™ TW-1721
Ideal for applications that require high precision positioning and timing in a small form factor, the TW1721 provides superior multi-path signal rejection, a linear phase response, and tight Phase Centre Variation (PCV).
Featuring a compact 25mm dual-feed wideband patch element, the TW1721 provides a truly circularly polarized response, with a typical axial ratio of less than 2dB over the full bandwidth.
The antenna comes with a short 15cm cable with an MCX right angle male plug. We include an MCX to SMA male adapter for connecting to the RasPiGNSS “Aldebaran”‘s SMA female socket.
Please see the Tallysman TW-1721 product page for detailed specifications or download the data sheet directly.
Single-frequency GPS/GLONASS Antennas
These antennas are capable of receiving the GPS/QZSS L1, GLONASS G1, and SBAS (WAAS, EGNOS, GAGAN, MSAS) satellite frequency bands. They are ideally suited for the RasPiGNSS “Aldebaran”, which is capable of receiving these satellite frequencies.
Tallysman™ TW-2410

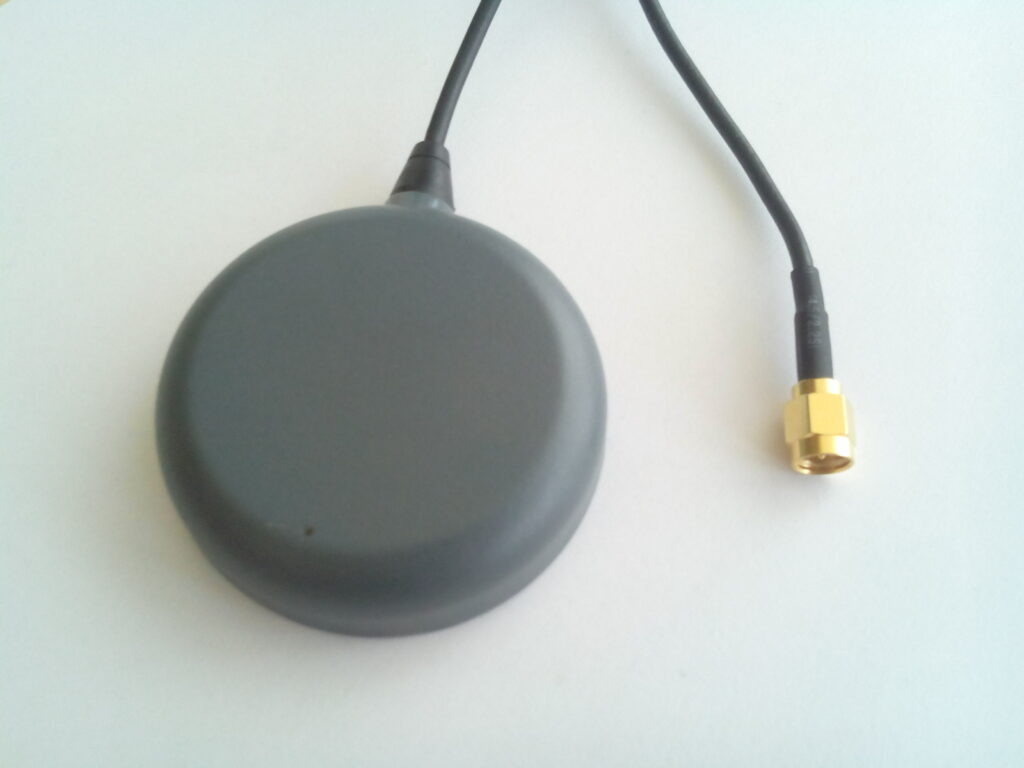

The TW-2410 is especially designed for precision industrial, agricultural and military applications and offers excellent circular polarized signal reception, multipath rejection and out of band signal rejection. It is ideal for use in Precise Point Positioning (PPP) systems which require only a single frequency. With its large patch element of 57mm diameter it offers excellent SNR and signal quality even in adverse reception environments like tree canopy etc. The TW-2410 is delivered with 5m cable and SMA male connector suitable for connecting to the RasPiGNSS module.
Please see the Tallysman TW-2410 product page for detailed specifications or download the data sheet directly.
Tallysman™ TW-4421

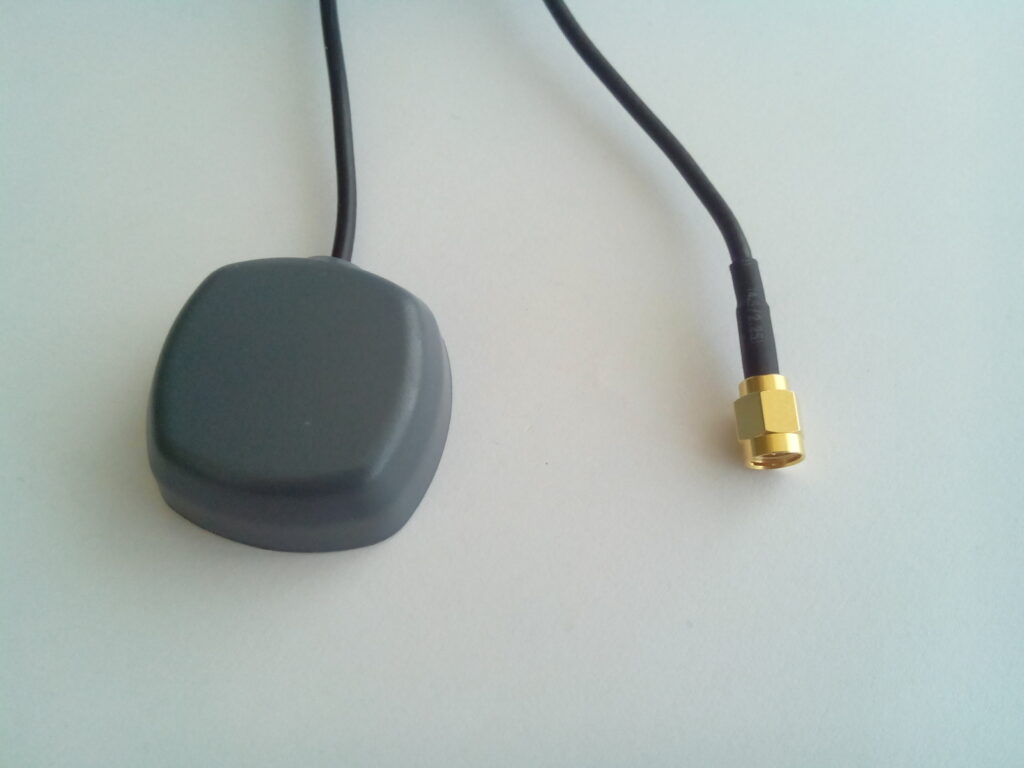

Low-cost, small form-factor, dual-feed GPS/GLONASS magnetic mount antenna. Due to its novel dual-feed wideband patch element it provides excellent multipath rejection capabilities, and is therefore best suited for mobile applications in complex urban environments (urban canyons, etc.). The TW-4421 is delivered with 3m cable and SMA male connector suitable for connecting to the RasPiGNSS module.
Please see the Tallysman TW-4421 product page for detailed specifications or download the data sheet directly.
Tallysman™ TW-1421
Featuring similar electrical specifications as the TW-4421, this antenna is a bare-bones version designed for applications in embedded systems or custom builds. It has no housing, but provides a circular 35mm thin mounting plate with M2 holes around the 25mm square patch element.
The antenna comes with a short 15cm cable with an MCX right angle male plug. We include an MCX to SMA male adapter for connecting to the RasPiGNSS “Aldebaran”‘s SMA female socket.
Please see the Tallysman TW-1421 product page for detailed specifications or download the data sheet directly.
